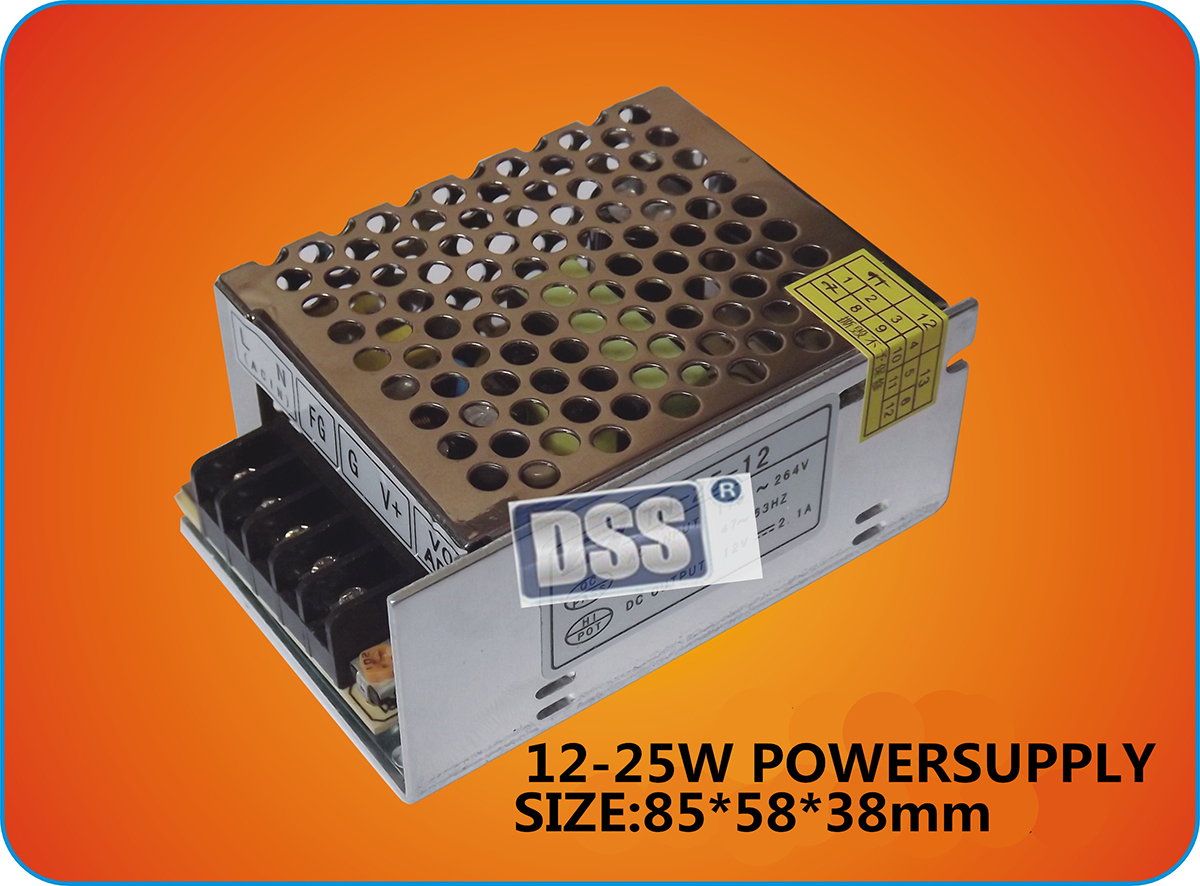

24W industrial power supply

* Small volume, light weight, streamline,low cost、high reliable ;
* Built-in EMI filter, good anti-interference strength and high reliability；
* 100% full load testing, stable performance and reliable quality;
* With short circuit, overload, over-current protection function, use more secure;
* high efficiency, energy conservation and environmental protection;
* Modified and Custom Design Available

輸出電壓OUTPUT（V）	4.2----7	7.1----11	11.1----17	17.1----24	24.1----36
輸出電流OUTPUT（A）	0.01----3	0.01----2	0.01----2.5	0.01----1.25	0.01----1.25
輸出功率OUTPUT（W）Max	21	24	30	30	30
輸入INPUT
電壓Voltage/頻率Hz	100V—240VAC 50-60Hz
調整范圍Adjusting range	90V—264VAC，47Hz—63Hz
保護Protection	內置一次性保險絲不可拆卸Internal Primary Current Fuse, Inrush Limiting
輸出 OUTPUT
輸出電壓調整范圍OUTPUT VOLTAGE ADJ.	±2%
紋波Ripple	1～2%Vp-p Max
瞬態響應Transient Response	在50%負載時0.5毫秒 0.5mS for 50% Load Change Typical
過流保護點OCP	105%～150%
電性 Electrical
絕緣強度Dielectric Withstand	輸入—輸出INPUT—OUTPUT		1.5KVAC/min, Cutoff current＜5mA
	輸入—地INPUT—FG		1.5KVAC/min, Cutoff current＜5mA
	出—地OUTPUT—FG		0.5KVAC/min, Cutoff current＜5mA
轉換效率 Efficiency	＞80% typ
浪涌電流 surge current	當輸出為額定負載,環境溫度為25℃,輸入240VAC冷態起動電源時的最大浪涌電流小于30A， 30A MPS@240VAC at 25 ℃ Cold start
絕緣等級Insulation class	輸入對地最小50兆歐 50M ohms minimum from input to ground
平均無故障時間 MTBF	在25℃環境溫度下，額定負載工作平均無故障時間30,000小時； In 25 environment Temp,The Rated load MTBF 30000H
接口類型interface type	8.25-5P
使用環境Environmental
工作溫度Operaturing Temperature	0℃～45℃
儲存溫度Storage Temperature	-20 to +80°C
相對濕度Relative Humidity	工作：20%～80%RH Operating 20 to 80% RH
	儲存:10 - 90% RH Storage: 10 to 90% RH
冷卻方式Cooling	自然冷卻Natural Convection Cooling
