| 輸入INPUT |
| 電壓Voltage/頻率Hz |
100V—240VAC 50-60Hz |
| 調整范圍Adjusting range |
90V—264VAC，47Hz—63Hz |
| 電流Current |
2.0A Max |
| 保護Protection |
內置一次性保險絲不可拆卸Internal Primary Current Fuse, Inrush Limiting |
| 輸出 OUTPUT |
| 空載電壓范圍No-load voltage range |
27.5-28.2VDC |
| 負載電壓范圍Load voltage range |
19-28.23VDC |
| 充電電流Charging current |
1800-2200Ma |
| 轉燈電流 Turn lamp current |
250-350Ma |
| 紋波Ripple |
＜350mV |
| 瞬態響應Transient Response |
在50%負載時0.5毫秒 0.5mS for 50% Load Change Typical |
| 過流保護點OCP |
105%～150% |
| 保護Protection |
短路保護/過載保護/過溫保護，可自動恢復.Short Circuit protection/Over voltege protection/Over Temperature protection,
Can automatically recover. |
| 常用DC插頭Commonly DC plugs |
3.5*1.35 4.0*1.7 5.5*2.1 5.5*2.5，可按要求定做，客戶沒注明長度一律為10mm。Can be customized according to the requirement，10 mm in length if not specified。 |
| 電性 Electrical |
| 絕緣強度Dielectric Withstand |
4242 VDC Primary – Secondary |
| 漏電流Leakage Current |
0.25mA @ 2 Pin / 0.5mA @ 3 Pin |
| 指示燈Indicator light |
綠色：電池充滿或與電池?cái)嚅_(kāi)狀態，紅色：起充或充電過程；Green：charger is full or disconnect；Red：Pre-charger or charging |
| 轉換效率 Efficiency |
符合5級能效及ERP階段2認證 Engergy Star Level V & ErP Stage 2 Certified |
| EMI傳導和輻射EMI Conduction & Radiation |
EN:55022：2010，EN55014-1，EN61000-3-3：2013 |
| 浪涌電流 surge current |
當輸出為額定負載,環境溫度為25℃,輸入240VAC冷態起動電源時的最大浪涌電流小于30A，30A MPS@240VAC at 25 ℃ Cold start |
| 抗靜電EMS Immunity |
IEC61000-4-2 |
| 絕緣等級Insulation class |
輸入對地最小50兆歐 50M ohms minimum from input to ground |
| 平均無故障時間 MTBF |
在25℃環境溫度下，額定負載工作平均無故障時間30,000小時；In 25 environment Temp,The Rated load MTBF 30000H |
| 使用環境Environmental |
| 工作溫度Operaturing Temperature |
0 to +40°C |
| 儲存溫度Storage Temperature |
-20 to +80°C |
| 相對濕度Relative Humidity |
工作：20%～80%RH Operating 20 to 80% RH |
| 儲存:10 - 90% RH Storage: 10 to 90% RH |
| 冷卻方式Cooling |
自然冷卻Natural Convection Cooling |
| 安規認證Safety Approvals |
| CCC TUV-CE-EMC TUV-CE-LVD TUV-GS TUV-FCC SAA(RMC) TUV-PSE TUV-CB CUL UL ROHS |
| 其他other |
| 產品尺寸Case Dimension |
125*55*31mm |
| 包裝細節Packing detail |
大約about193G/PCS 外箱尺寸Carton size：460*390*260mm |

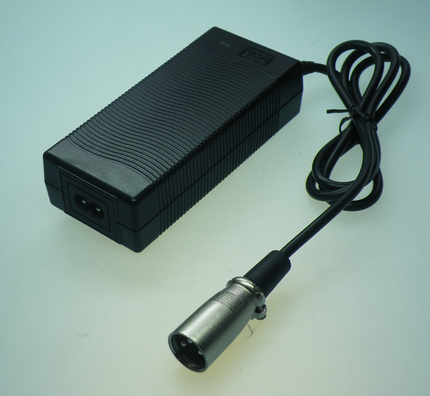

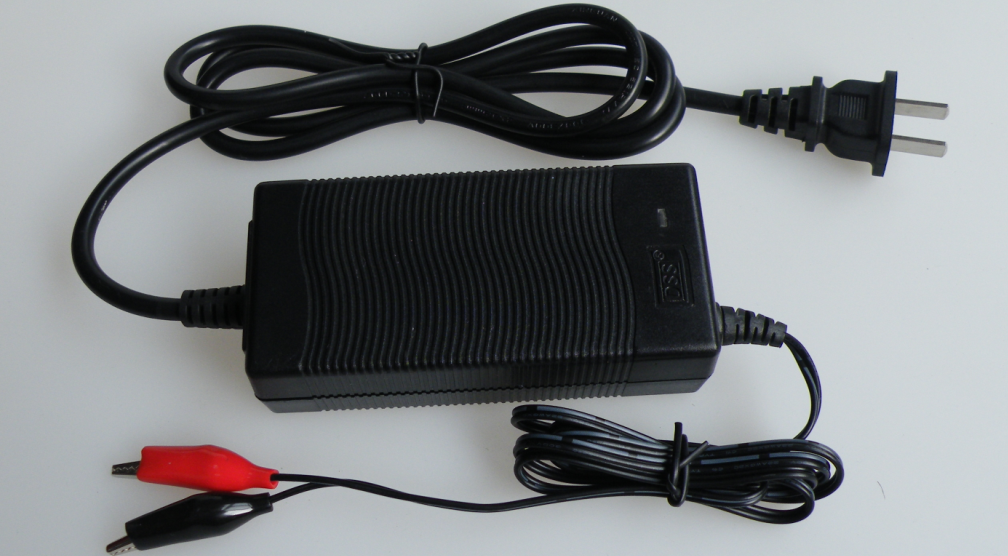

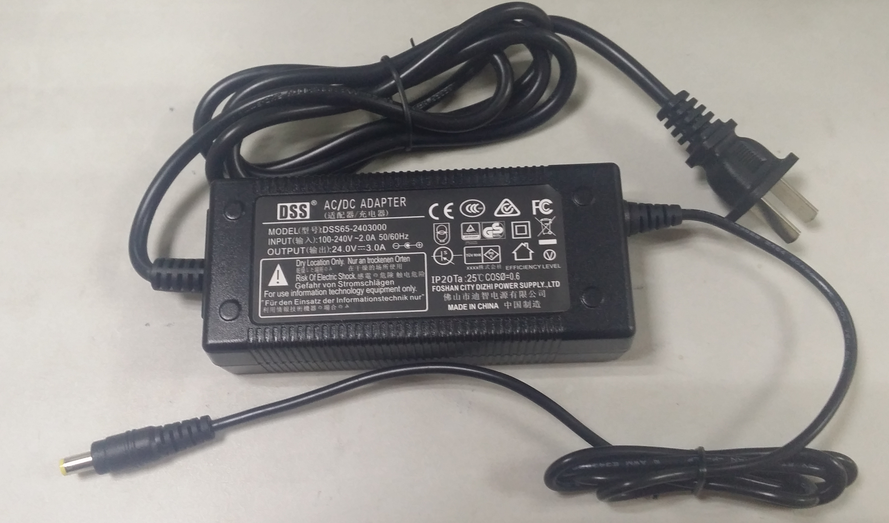

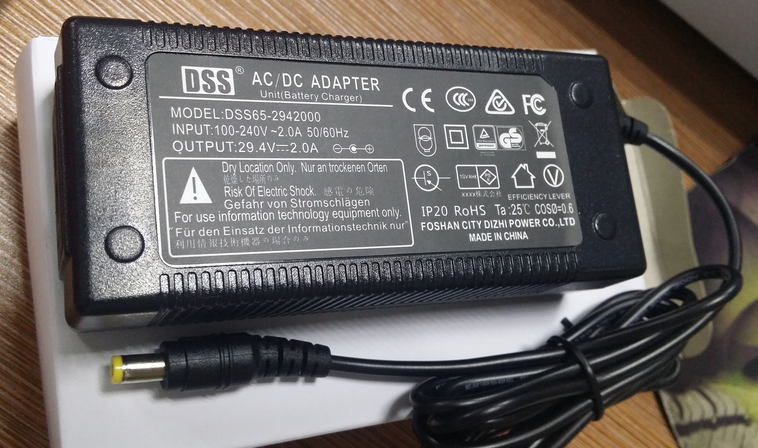

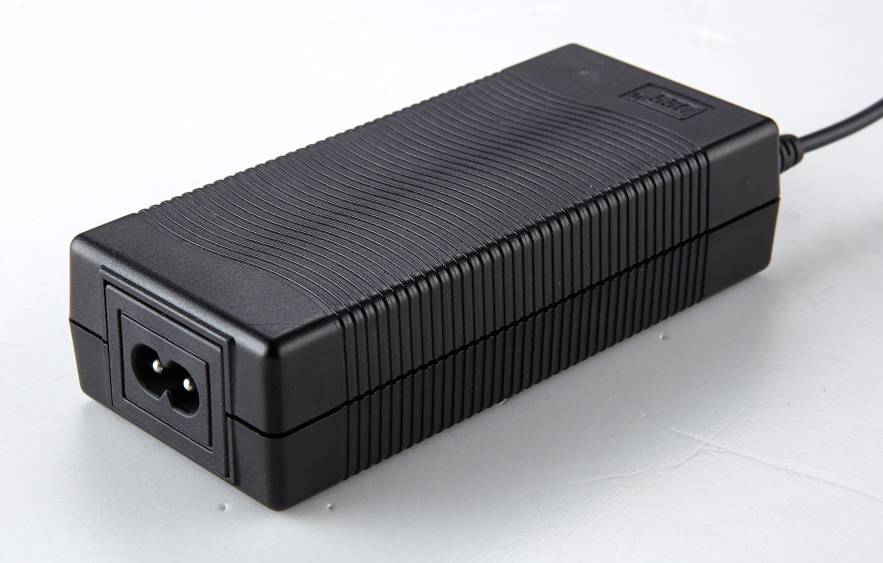

| 實拍圖片actual picture： |
|
